hej
ive bought a soldering kit, the MK114 1 chanel light organ
and in the evening ive solderd it and ive putted on al 12Volts DC supply
and connected them straight to a radio (red and black wire)
but in wont work on al led that needs 12Volts
sow now is the question what i did wrong
kindly regards
laurens longé
We have to assume that no assembly mistakes have been made.
Most likely, the signal at the input is too weak.
Try with a radio or amp that delivers more power.
ive connected it on on a radio of 200W
first without speaker then with one on the channel end
mvg Q
Then there must be an assembly and/or hook-up problem.
Sorry, this forum does not allow picture uploads
If you can provide LINKS (e.g. by using a free online picture base) to HI-RES and SHARP pics of your assembly (both solder- and component side)
then we can take a look and provide some feedback.
here are some pictures

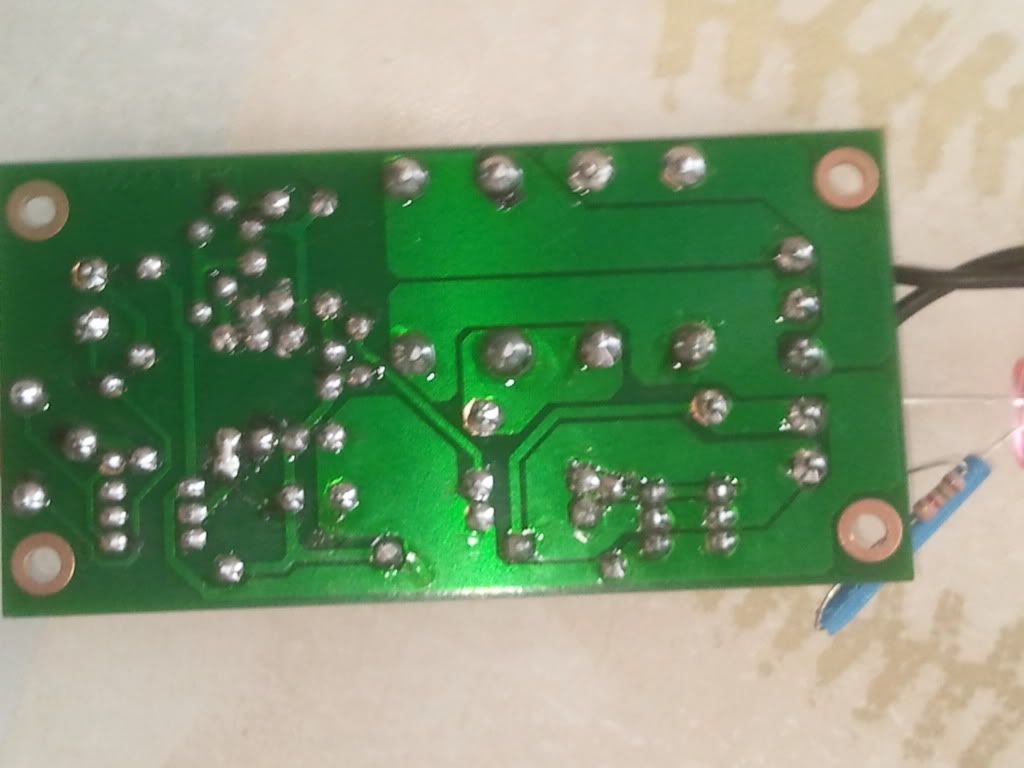

soldering side
i209.photobucket.com/albums/bb20 … 143906.jpg
parts side
i209.photobucket.com/albums/bb20 … 143859.jpg

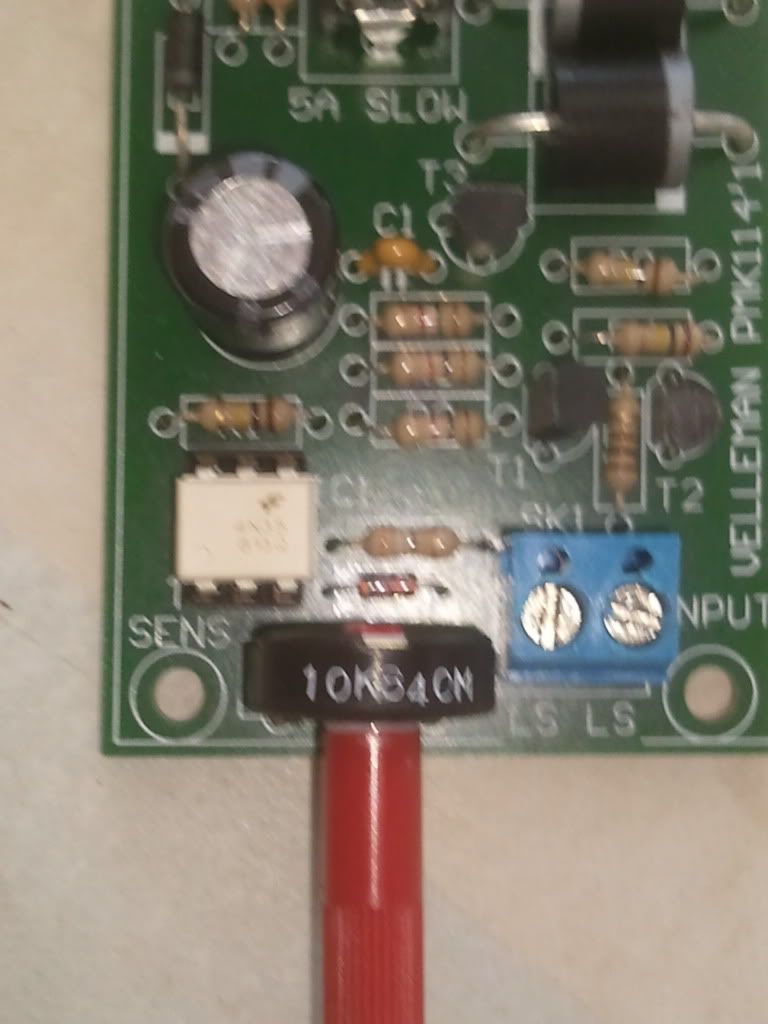

i209.photobucket.com/albums/bb20 … 143852.jpg

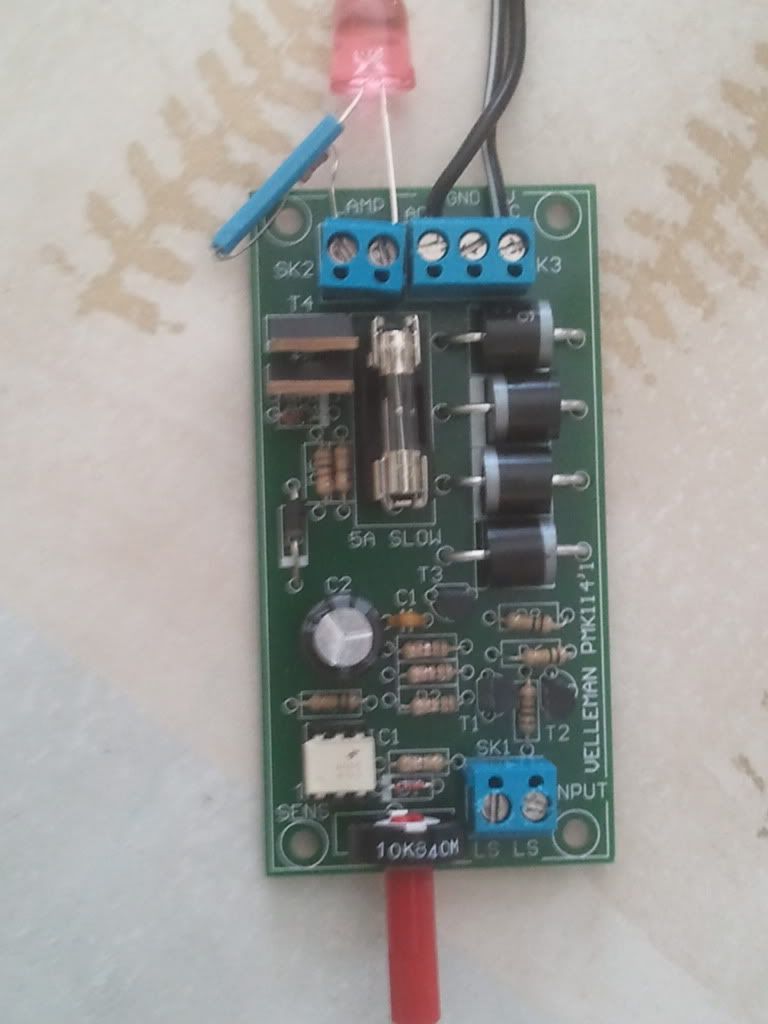

i209.photobucket.com/albums/bb20 … 143845.jpg
my idea is putting an led on the output (LAMP)
ive putted 12VDC on the power supply the supply can take 1 amp
mvg Q
Please test with lightbulb, not with a led.
Sorry, but the quality of the pictures does not allow us to spot soldering errors.
If you wish, you can return your kit for inspection/repair.
You wrote that you are using a 12V DC power supply, but from the pictures it looks like you connected it as if it was AC.
